DALI DT8 RGBW LED Spot Module | 60° CRI90 24V DC MR16 Style

Item Code: / Series: Master

$31.34

Free Shipping

The newest specially COB technology, the spot offers a real downlight emission characteristics, i.e. directs the light at a 60 degree angle. Best technology for mixture Red, Green, Blue and WW,Not any layered light between different color

- Fits into existing MR16 lamp housings.
- Integrated optics, Reflector style.
- High-quality aluminum housing and Premium COB.
- For electrical parallel connection.
- Five-pole connection cable with a length of 50 mm.

Notes: Only controllable with DALI DT8 and balance dimmer

Wattage: 8W

  • 8W

Notify me when this product is available:

DALI DT8 RGBWW 24V LED MR16 Spot Module

controllable with DALI DT8 and Balance Dimmer

Feature

If the focus of the application is a perfectly colored accent and effect lighting, the installation of the RGBWW LED Spot is a good idea. Here you can admire the remarkable features of the mr16 spot modue, because they always convince with fast-reacting and precise color inputs.

In addition, the spot show their special feature in the combination of the RGB and WW channels in one LED COBs. This makes the product unique and leaves a lot of room for creativity. Thanks to the very high color rendering CRI > 90 RA, the stripes ensure naturally pleasant illumination. Each color (red, green, blue) can be controlled separately and is therefore suitable for use with any 24V-based PWM dimmer.

Practically, the fields of application of the RGBWW LED Spot result in a versatile range of possible uses. The result is a whole new and cozy feeling at home. The stripes with beautiful color accents can create an individual homely atmosphere in every room. The resulting light effects can make a day unforgettable and stay in your memory for a long time

Technical Data

Operating voltage: 24V DC
Max. current consumption: 0.31 A
Max. power consumption: 8 W (combined)
Luminous flux: approx. 400 lm (combined)
CCT:  2850K @ Warm White Channel and 5000K @ RGBW all Channel on
Color rendering index CRI: >90 Ra (WW Channel)
Beam angle: 60 degrees
Dimmable: Yes, up to 1% with the appropriate PWM dimmers
Chip type: COB
lifetime: >50,000 hours
Operating temperature: -25 degrees Celsius to +60 degrees Celsius
Storage temperature: -40 degrees Celsius to +80 degrees Celsius

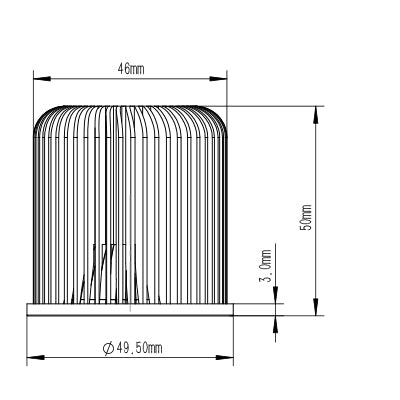

Dimensions: 50 mm with a diameter of 49 mm
Connecting cable: 5 wires and 50 mm length

Expert and Master Class LED Spot Module

Expert 31345 vs Master 31362

COB LED Updated on Master Class

Expert class 24V LED MR16 Spot is an earlier solution developed by TILLUME, which has the characteristics of high color rendering and high luminous efficiency. Under the same power, professional-level COB has higher luminous efficiency. With the light effect solution of our Mixed Lai technology, it can greatly solve the problem of delamination in the center of the light spot.
The master class adopts the latest COB technology to improve the uniformity of light output. The staggering distribution completely solves the delamination of the light spot, and the manufacturing process adopts the same solution as Samsung. Different from the process of CSP chips, our chips of each color can control the light color very well, and there will be no large color difference. At the same time, the color temperature is kept at a high level, and it can achieve a 2200K candlelight color.

Different Optic System

The expert grade uses optical grade PC material as the dust cover. The Master Dust Cover is made of high-end glass for better durability and shatter resistance. And don't be afraid of high temperatures.
Due to the use of the latest COB solution, the master class cancels the light mixing ball parts, and directly performs optical processing by the reflector to reduce light effect damage. Let every beam of light be used.
Expert and Master Class 24V DTW LED Spots Optics System

From the above picture, we can easily know the Master Class saves a part (Mixed Light Ball) compared with Expert Class. So the light can output directly.

Revised The Housing Design.

The master class uses a matte black surface treatment process, and the product is higher-end. At the same time, because the emissivity of black aluminum is greater than that of silver, the master spotlight can dissipate heat faster.
At the same time, the issue of light leakage of professional-grade radiators has been corrected, no matter what kind of hollow ceiling or general ceiling is used, it can be used.

Master Class Work with DALI DT8

The master class has a special circuit design, only using the DALI DT8 dimmer with power balance, the maximum can reach 6W single channel.

Expert grade single channel is only 4W, 2200K single channel luminous flux is equivalent to 35W incandescent lamp.

Our Recommend

We recommend choosing a master-class LED module if you are looking for the best light effect and using it in a commercial environment. If it is for home use, the Expert Class has an affordable price and the performance fully meets the general family.

Here at TILLUME LEDs, we try to make LED lighting easy to understand for our customers. Read below to understand the terminology used on this website and learn about LEDs and lighting science

General Lighting parameters

What are lumens (lm)?

Lumen is the measurement value of brightness. It said the power of light which can be seen by the eye. In fact, light is an electromagnetic wave, In common the frequency of electromagnetic waves that the average human eye can perceive is 380~750THz, and the wavelength is between 780~380nm. So we can say the total watt of light in 380nm-780nm is equal to the lumen

Lighting spectrum



Because incandescent lighting have the same energy conversion efficiency by different manufacturers, we are all accustomed to using watts to measure the brightness of a light. That is no problem with incandescent lighting. But it is not suitable for LED. Different manufacturers using different technology and quality level, the energy conversion efficiency will be a big difference, low quality may be 60-70lm/w, and the high quality will be 100-120lm/w for the same lamp. So we have to use lumen. Lumen is the most important parameter when choosing the LED light you need. Comparing lumen output between different products will help you to buy the right LED lamp at a reasonable price.

What is AC?

This is Alternating Current. This is the electricity that is used in most spaces. Generally, there have to 2 kinds of voltage in different countries all over the world. One is 220-240V, and the other is 110-130V. The value of voltage we said is a valid value the voltage value is different each time. It looks the same as a sine wave.

alternating current sine wave photo

From the picture, we can know the highest voltage is 311V, and 220V is near the avg value(you can understand it as simple). In developed countries, the voltage is stable. But in some developing countries, it usually is not stable due to weak basic power facilities. It may be a higher voltage or lower voltage than the rated voltage.

What are DC and safety voltage?

This is Direct Current. The current always moves in the same direction. So when the device asks for direct current, we need to connect wires as positive and negative electrodes. Safe voltage refers to the voltage that will not cause direct death or disability. The industry stipulates that the safe voltage is not higher than 36V, and the continuous contact safe voltage is 24V.

What is a Watt?

One watt is equivalent to one joule per second, and it's a measure of power consumption that your power company uses to calculate how much energy you're consuming. In the LED era, power cannot be used as a parameter to evaluate whether the light bulb is bright enough, because the better the LED, the more lumens can be emitted with less power.

What is luminous efficacy?

It is the result of dividing lumen by power. The higher the value, the higher the energy conversion efficiency. The figure below shows the new Erp's regulations on energy efficiency labels. We can see that the higher the light efficiency, the more energy saving

You can check the New Erp labeling regulations

What is CRI and why is it important?

CRI is an acronym for Color Rendering Index, when we want to know how colors look under a sunlight source, CRI is an important parameter. The higher the CRI value, the closer the color of the object being illuminated is to its true color. CRI is measured from 0 to 100. CRI80+ is the industry standard for most applications while CRI90+ is a premium level that can show your home, clothing, and furnishing look best.

cri of LED

What is color temperature?

Color temperature is a unit of measurement that expresses the color components contained in light, we also call it CCT as an abbreviation. The concept is based on a fictional black object that emits light of different colors when heated to different temperatures, and the object appears in different colors. Just like when you heat a block of iron, it first turns red, then yellow, and finally white. And it is measured in Kelvins(K).
LED lights fall in a spectrum between 2000K and 6500K. 2200K looks like a Candlelight, 2850K is the same as a standard Incandescent lamp, and 6500K is nearly the color of the noon sky.
Wider CCT adjust range in TILLUME

What is Beam Angle?

The angle formed from the main axis with the strongest light source intensity to the 50% position of the luminous intensity on both sides is the so-called beam angle.

beam angle of LED spot

For the same light source, if the beam angle is larger, the central light intensity will be smaller, and the light spot will be softer. If the beam angle is smaller, the central light spot will be stronger and the light spot will be clearer.



Professional lighting knowledge

What is the difference between CIE and TM-30 standards?

The CIE is a European Standard that evaluates the color rendering of the light source as Ra or CRI. TM-30 is the US method for Evaluating Light Source Color Rendition as Rf and Rg.
  • TM-30 using 99 sample colors to evaluate the color rendering parameters of light sources.
  • CIE using 8 or 15 sample colors to evaluate the color rendering performance.
So TM-30 Standard is higher than CIE. If you want to buy premium lighting, we need to use TM-30 to check.
CRI and TM-30 are different

Besides CRI, you also need to care about Rg and Rf

Rf is Color Fidelity Index, it is from 0 to 100, it is similar to CRI, but it uses 99 sample colors. Rf =100 is the maximum value, which means that there is no color difference with the color under the natural light source, and the color effect is realistic.

The color saturation Rg is used to characterize the color gamut index GAI (Gamut Area Index) of the light source, that is, the saturation degree of each standard color compared with the reference light source under the illumination of the test light source. The index of 100 represents the best saturation.

    • Rg = 100, which means that the saturation of the light source is the same as that of natural light, and the color saturation is moderate
    • Rg>100, which means that the light source can increase the saturation of the color, and the object looks more vivid and vibrant
    • Rg<100, which means that the saturation of the color will be reduced under the test light source, the color saturation will be insufficient, and the object will become dull and dull

Why do my lights have different colors, What is SDCM?

SDCM is a unit of measurement for color tolerance. It is also an abbreviation for Standard Deviation of Color Matching.

Color tolerance refers to the difference between the formula calculated by the computer and the target standard. It is calculated under a single lighting source. The smaller the value, the higher the accuracy.

Relevant standards require that SDCM should be less than 6, and usually, high-quality light sources can reach 3 and below

Different SDCM Effect



What is Binning?

Simply put, binning is the process of grouping LEDs during production so that they matched with LEDs of the same color sector. For example, all 2700K chips are ‘binned’ together and are separated from chips that have a higher/lower color temperature. Learn more about Binning here.

If LED are binned together with a very narrow CCT range, Lighting color consistency will be good

What is the voltage drop?

When installing LED strips or other DC-powered fixtures, be sure to consider the effect of "voltage drop". In a DC circuit, the voltage drops gradually as it passes through a length of wire, and the longer the line, the greater the voltage drop. Therefore, for each meter of wire, the available voltage decreases gradually along the length of the wire. This is also why one end of the strip light is brighter than the other.

What is peak current?

Someone also called it Inrush Current

The peak current generally refers to the transient high-amplitude current signal that appears in the power supply line or electronic circuit. It may be generated when the power supply is started or turned off, or it may be the interference caused by other equipment. Electrical appliances and electronic equipment must take various measures to suppress the peak current and make the equipment work stably.
