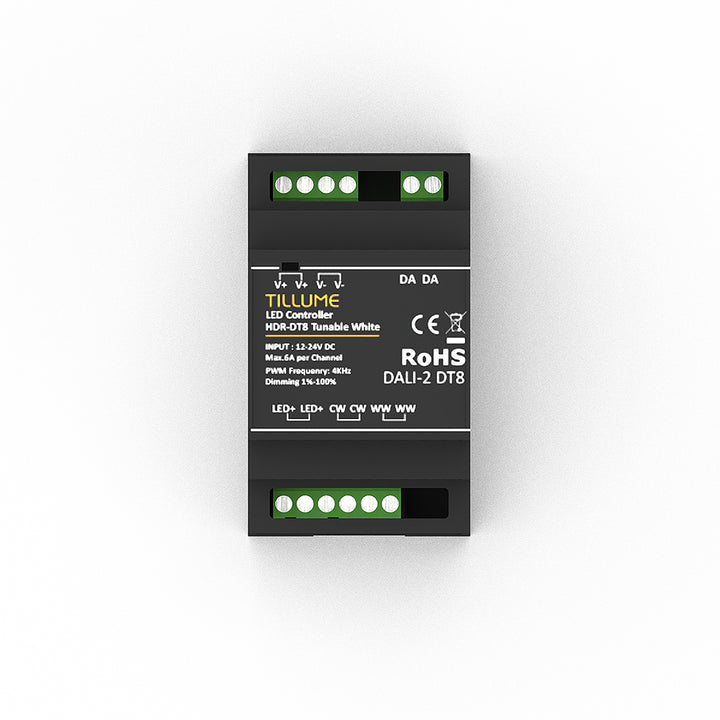

DIN 3SU DALI LED Dimmer | 24VDC 6A DT8 Tunable White

Art. Nr: 83021M03 / Serie: HDR

€27,68 EUR

Inklusive Steuern, kostenloser Versand (8-15 Tage)

- DALI LED Controller (CV) with 2 channels to control Tunable White LED Spot or LED Stripe via one DALI address (DT8).
- Each channel supports a maximum current output of 6A
- As the DT8 control the device also supports the operating modes Balance&Dim, Dim2Warm.
- Perfectly compatible with DALI control systems of internationally renowned brands such as Lunatone, TRIDONIC,OSRAM, and PHILIPS.
- Support open circuit and short circuit detection functions, and have overcurrent protection

Tips:

Add to WishlistCompare
Delivery & ReturnAsk a Question
Beschreibung

The DALI Dimmer is a constant voltage dimming controller with 2 channels, and each channel support max.6A output. TILLUME DALI CCT tunable white led controller complies to standard DALI protocel with 1 DALI address to controller 2 channel.

Suitable for controlling CCT LED strips or Tunable White LED Spots with an operating voltage of 12V - 24V DC

Features

Input Voltage: 12-24V DC,

Max. Support Current: 6A per channel

Max. Support Output Wattage: 144W

Dimming Range: 1% - 100%

PWM Frequency: 4KHz

Operating Mode DT8: One DALI Address for the independent control of brightness level and color temperature

Low standby power consumption
