DALI CV LED Spot Ceilling Spotlight Matte White | CRI90 24V 6+6W Replaceable LED Source

Item Code: / Series:

€49,42 EUR €31,99 EUR SAVE 35%

Tax included, Free Shipping (8-15days)

The newest specially COB technology, the spot offers a real downlight emission characteristics, i.e. directs the light at a 60 degree angle. Best technology for mixture CW and WW,Not any layered light between CW and WW

- Adjust color temperature 2200K - 6500K.
- High-quality aluminum housing and Premium COB.
- Locking with snap-in ring, Rotatable
- Outside Diameter: Ø85mm and Cutout: Ø68mm
- Material: Aluminum
- Degree of protection: IP20
- Three-pole connection cable with a length of 150 mm.

Notes: Only controllable with DALI DT8 and balance dimmer

Tips:

pcs/lot: 1pc/lot

1pc/lot
10pcs/lot
50pcs/lot
Description

DALI DT8 LED Spot Recessed Spotlights | 24V DC 6+6W

Feature

The replaceable design of light source is convenient for better replacement and maintenance in the future. It can meet you well whether the LED is weak or you want to change the lighting design at home. The LED is installed from the front, making it very easy to install. You can also adjust the position of the light by rotating the direction.

TILLUME 24V DT8 Tunable White CV DALI LED Spot is configured to support color matching from 2200K to 6500K. Customized COB is better than most similar products in terms of light color and performance. Built-in protection constant current driver has good adaptability to most controllers, and has a certain degree of protection ability for the surge current, overvoltage and undervoltage generated by 24V power supply or controller.



Technical Data

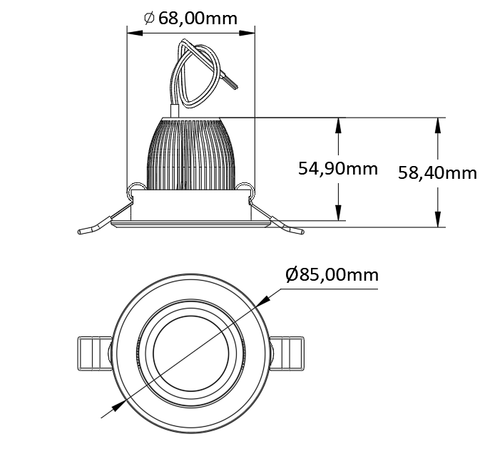

LED DALI Einbaustrahler Einbaudimension
Operating voltage: 24V DC
Max. current consumption: 0.25A
Max. power consumption: 6 W
Luminous flux: approx. 480 lm (combined)
Color temperature: 2200K - 6500K
Color rendering index CRI: >95 Ra
Power 6W (6W WW+ 6W CW)
Beam angle: 60 degrees
Dimmable: Yes, up to 1% with the appropriate PWM dimmers
Chip type: COB
lifetime: >50,000 hours
Operating temperature: -25 degrees Celsius to +60 degrees Celsius
Storage temperature: -40 degrees Celsius to +80 degrees Celsius
Dimensions: 50 mm with a diameter of 49 mm
Connecting cable: 3 wires and 150 mm length
