Tunable White LED Spot | 60° CRI95 24V DC 6W+6W Watt Balance
Item Code: 81061M12 / Series: Expert
Tax included, Free Shipping (8-15days)
Tips:
Description
Deep Tunable White MR16 Style LED Spots | 6W+6W Wattage Balance
Feature
This item is specialized design by the one who want the best effect of mixture light when spots is dimming. we use lastest COB technology, in order to make spots have the best effect. Two color LEDs staggered distribution create most average light spot.
TILLUME Deep Tunable White 6+6W LED Spot enables a previously unprecedented color temperature range from 2200 K to 6500 K and thus ensures the optimum light color in every application.
1. Classic "tunable white" (the separate adjustment of the brightness and the color temperature)
2. Circadian color gradient throughout the day, the healthy one, the biorhythm adapted light colors
3. Bright daylight during the day and a cozy warm color temperature in the evening
Technical Data
Operating voltage: 24V DC
Max. current consumption: 0.25A
Max. power consumption: 6 W
Luminous flux: approx. 480 lm (combined)
Color temperature: 2200K - 6500K
Color rendering index CRI @2200K/6500K: >90 Ra
Color rendering index CRI @4000K: >95 Ra
Power 6W (6W WW+ 6W CW)
Beam angle: 60 degrees
Dimmable: Yes, up to 1% with the appropriate PWM dimmers
Chip type: COB
lifetime: >50,000 hours
Operating temperature: -25 degrees Celsius to +60 degrees Celsius
Storage temperature: -40 degrees Celsius to +80 degrees Celsius
Dimensions: 50 mm with a diameter of 49 mm
Connecting cable: 3 wires and 150 mm length
Operated With KNX System
Controller by MDT TECHNOLOGIES
Avaliable for the item as below
AKD-0424R.02
AKD-0424R2.02
AKD-0424V.02
AKD-0324V.02
AKD-0224V.02
Warm Tips: When you use below dimmer, you should open balance wattage function in software.
Operated With DALI System
Controller by LUNATONE
Avaliable for the item as below
DALI LED Power Supply(DT8):
89453849-CWW-24V
DALI LED Dimmer (CV, DT8):
89453836(4A)
86458673(8A)
89453838(10A)
89453841(16A)
89453841-HS(16A DIN Rail)
Introduction

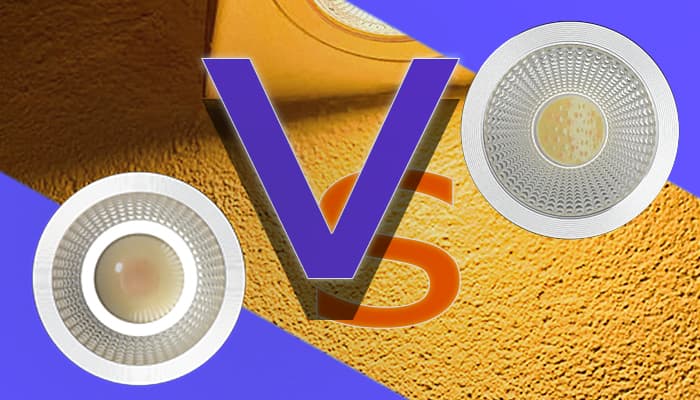

Expert and Master Class LED Spot Module

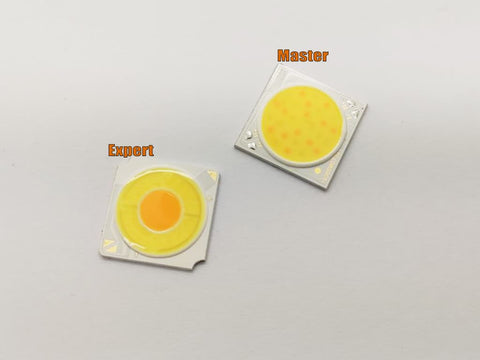

COB LED Updated on Master Class
Expert class 24V LED MR16 Spot is an earlier solution developed by TILLUME, which has the characteristics of high color rendering and high luminous efficiency. Under the same power, professional-level COB has higher luminous efficiency. With the light effect solution of our Mixed Lai technology, it can greatly solve the problem of delamination in the center of the light spot.
The master class adopts the latest COB technology to improve the uniformity of light output. The staggering distribution completely solves the delamination of the light spot, and the manufacturing process adopts the same solution as Samsung. Different from the process of CSP chips, our chips of each color can control the light color very well, and there will be no large color difference. At the same time, the color temperature is kept at a high level, and it can achieve a 2200K candlelight color.

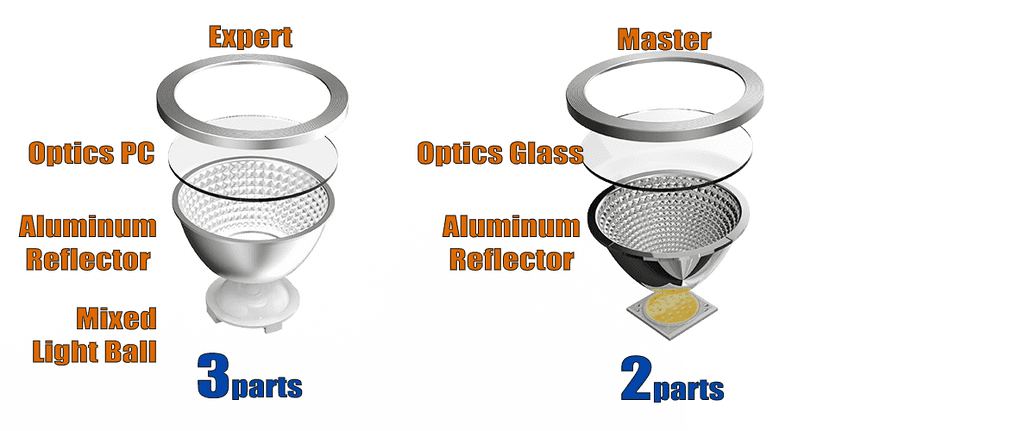

Different Optic System
The expert grade uses optical grade PC material as the dust cover. The Master Dust Cover is made of high-end glass for better durability and shatter resistance. And don't be afraid of high temperatures.
Due to the use of the latest COB solution, the master class cancels the light mixing ball parts, and directly performs optical processing by the reflector to reduce light effect damage. Let every beam of light be used.

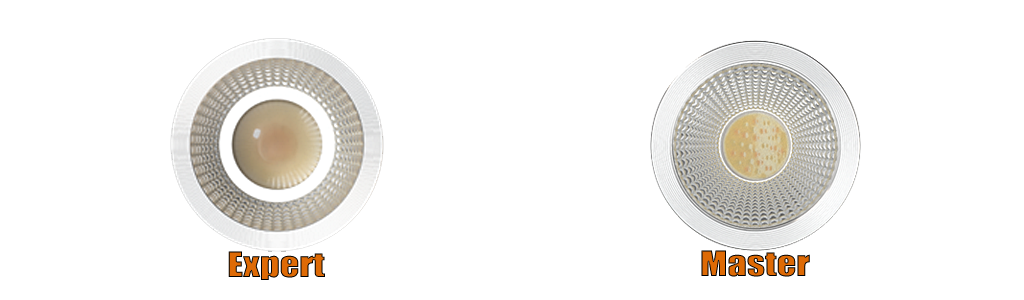

From the above picture, we can easily know the Master Class saves a part (Mixed Light Ball) compared with Expert Class. So the light can output directly.
Revised The Housing Design.
The master class uses a matte black surface treatment process, and the
product is higher-end. At the same time, because the emissivity of black aluminum is greater than that of silver, the master spotlight can dissipate heat faster.
product is higher-end. At the same time, because the emissivity of black aluminum is greater than that of silver, the master spotlight can dissipate heat faster.At the same time, the issue of light leakage of professional-grade radiators has been corrected, no matter what kind of hollow ceiling or general ceiling is used, it can be used.
Master Class Work with DALI DT8
The master class has a special circuit design, only using the DALI DT8 dimmer with power balance, the maximum can reach 6W single channel.
Expert grade single channel is only 4W, 2200K single channel luminous flux is equivalent to 35W incandescent lamp.
Our Recommend
We recommend choosing a master-class LED module if you are looking for the best light effect and using it in a commercial environment. If it is for home use, the Expert Class has an affordable price and the performance fully meets the general family.
